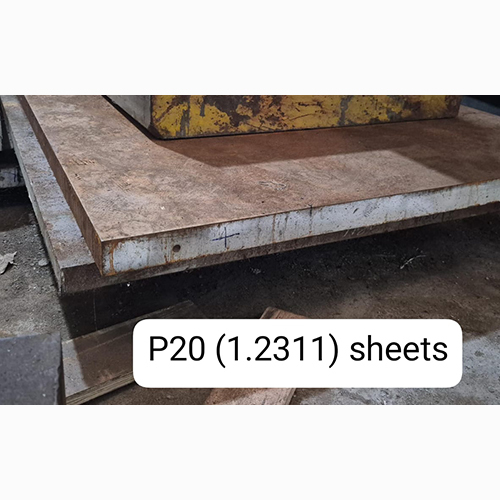

P20 (1.2311) Steel Sheets

Get a Price/Quote

P20 (1.2311) Steel Sheets Specification

Product Form
Sheet/Plate

Coating Type
Uncoated (custom coatings on request)

Tensile Strength
Typically 850-1100 MPa

Chemical Composition
C: 0.28-0.40%, Mn: 0.60-1.00%, Si: 0.20-0.40%, Cr: 1.40-2.00%, Mo: 0.30-0.55%, Ni: 1.0%

Material Composition %
C 0.38%, Mn 1.5%, Si 0.40%, Cr 2.0%, Mo 0.2%

Diameter
N/A for sheet form

Heat Resistance
Yes

Temper
Annealed, Pre-Hardened

Corrosion Resistant
Moderate, not classified as stainless

Size
Custom sizes available

Width
Customizable, typically 1000 mm to 2000 mm

Recyclable
Yes

Hardness
280-320 HB (pre-hardened)

Product Name
P20 (1.2311) Steel Sheets

Steel Type
Alloy Tool Steel

Steel Product Type
Flat Sheet / Plate

Grade
P20 (1.2311)

Thickness
Customizable, typically 10 mm to 300 mm

Shape
Sheet / Plate

Steel Standard
DIN 1.2311, AISI P20, JIS SCM4

Surface
Mill finish, Rough

Composition
High-grade pre-hardened alloy steel

Application
Plastic mould bases, Die holders, Injection moulds, Blow mold tools, Structural parts

Dimension (L*W*H)
Customizable, e.g. 3000 mm x 1500 mm x 20-200 mm

Weight
Varies based on size, typically 50 kg to several tons per plate

Color
Grayish brown (as supplied)

Material Grade
P20 Tool Steel

Finish Type
Rough / As rolled

Usage
Die and mold industry, Engineering components

Machinability
Excellent

Shock Resistance
High

Maximum Operating Temperature
About 500C

Available Cutting Options
Flame cut, Water jet, Plasma cut

Thermal Conductivity
34 W/mK at 20C

Weldability
Good with appropriate procedure

Density
7.85 g/cm3

Delivery Condition
Pre-hardened, Ready to machine

About P20 (1.2311) Steel Sheets

Crowning your projects with reliability, P20 (1.2311) Steel Sheets stand as the preeminent choice for the die and mold industry. Soaring above competitors, these alloy tool steel sheets offer excellent machinability and good weldability with the right procedures. Delivered pre-hardened and ready to machine, they ensure reduced processing time. Customize your dimensions, thickness (10-300 mm), and width (1000-2000 mm). Select from flame cut, water jet, or plasma cutting at the lowest price. Pick yours today and seize a remarkable offer from a leading supplier in India. Ideal for injection molds, die holders, and structural parts, their high shock resistance and consistent quality guarantee unmatched performance.

P20 (1.2311) Steel Sheets: Applications and Features

Used extensively as plastic mould bases and die holders, P20 (1.2311) Steel Sheets offer versatility in injection mold and blow mold tooling. Their special features include high shock resistance, good weldability, pre-hardened conditions, and excellent machinability. These flat steel sheets are also suitable for engineering structures and custom machine components. With a customizable size range, competitive prices, and reliable composition, they fulfill demanding industry standards for precision, durability, and performance across diverse applications.

Sample Policy, Payment Terms & Export Markets for P20 (1.2311) Sheets

Sample exchanges for P20 Steel Sheets are possible on request, supporting buyer confidence before placing large orders. Flexible payment terms suit various clients, including advance payments or secure letters of credit. With stock ready for immediate shipment, global export markets span Asia, Europe, Africa, and the Middle East. Each shipment is efficiently handled to ensure timely delivery, reflecting our commitment as a reliable supplier and trader of high-quality steel sheets.

FAQ's of P20 (1.2311) Steel Sheets:

Q: How are P20 (1.2311) Steel Sheets typically used in the industry?

A: P20 (1.2311) Steel Sheets are mainly used for plastic mould bases, die holders, injection molds, blow mold tools, and structural components in the die and mould industry due to their high machinability and robust mechanical properties.

Q: What is the process for customizing the dimensions or thickness of P20 Steel Sheets?

A: You can specify desired length, width, and thickness (typically 10 mm to 300 mm) when ordering. Sheets can be flame cut, water jet, or plasma cut to meet exact project needs, ensuring a tailored fit for your application.

Q: When can I expect to receive the ordered P20 Steel Sheets?

A: Stock is ready for prompt shipment, and delivery times depend on the destination and customization requirements. For standard sizes, shipment is often immediate; for custom dimensions, processing times are confirmed at order placement.

Q: Where do you export P20 Steel Sheets?

A: We export P20 Steel Sheets across global markets, including Asia, Europe, Africa, and the Middle East, ensuring compliance with international standards.

Q: What are the main benefits of choosing pre-hardened P20 Steel Sheets?

A: Pre-hardened P20 Steel Sheets save valuable machining time, reduce production steps, and offer consistent hardness and mechanical strength, making them ideal for precision tooling and long-lasting mold performance.

Q: How do I maintain the quality and performance of P20 (1.2311) Steel Sheets in use?

A: Proper machining and following recommended heat treatment, cleaning, and storage guidelines help maintain the sheets' performance. Avoid prolonged exposure to corrosive environments, as P20 is moderately corrosion-resistant but not classified as stainless.
